Development Guide

Introduction

In Getting Started document, a new sample project is created named "Acme.PhoneBookDemo". This document is a complete guide while developing your project. We definitely suggest to read this document before starting to the development. Since ASP.NET Zero is built on ASP.NET Boilerplate application framework, this document highly refers it's documentation.

Before reading this document, it's suggested to run the application and explore the user interface. This will help you to have a better understanding of concepts defined here.

Pre Requirements

Following tools are needed in order to use ASP.NET Zero Core solution:

Solution Structure (Layers)

After you create and download your project, you have a solution structure as shown below for *.Web.sln:

There are two more solutions, *.Mobile.sln contains only Xamarin application development projects and *.All.sln contains both mobile and web development projects.

ASP.NET Core solution

There are 12 projects in the solution:

  • Core.Shared project contains const, enum and helper classes used both in mobile & web projects.
  • Core project contains domain layer classes (like entities and domain services).
  • Application.Shared project contains application service interfaces and DTOs.
  • Application project contains application logic (like application services).
  • EntityFrameworkCore project contains your DbContext, repository implementations, database migrations and other EntityFramework Core specific concepts.
  • Web.Mvc project contains the presentation/API layer (Controllers, Views, javascripts, styles, images and so on) for backend and frontend applications.
  • Web.Host project does not contain any view/css/js files. Instead, it just serves the application as remote API. So, any device can consume your application as API.
  • Web.Core project contains common classes used by Mvc and Host projects.
  • Web.Public project is a separated web application that can be used to create a public web site or a landing page for your application.
  • Migrator project is a console application that runs database migrations.
  • ConsoleApiClient project is a simple console application for performing API requests to the application authenticated via IdentityServer4.
  • Tests project contains unit and integration tests.

Applications

ASP.NET Zero solution contains four applications:

  • Back End Application (Web.Mvc): This is the main application which is entered by username and password.
  • Back End API (Web.Host): An application to only serve the main application as API and does not provide UI.
  • Public Web Site (Web.Public): This can be used to create a public web site or a landing page for your application.
  • Migrator: Console application that runs database migrations.

Multi tenancy

Multi-tenancy is used to build SaaS (Software as a Service) applications easily. With this technique, we can deploy single application to serve to multiple customers. Each Tenant will have it's own roles, users and settings.

ASP.NET Zero's all code-base is developed to be multi-tenant. But, it can be disabled with a single line of configuration if you are developing a single-tenant application. When you disable it, all multi-tenancy stuff will be hidden and not available. If multi-tenancy is disabled, there will be a single tenant named Default.

There are two types of perspective in multi-tenant applications:

  • Host: Manages tenants and system.
  • Tenant: Uses the application features.

Read multi tenant documentation if you are building multi-tenant applications.

Web Site Root URL

appsettings.json in Web.Mvc project contains a setting, named "WebSiteRootAddress", which stores root URL of the web application:

"WebSiteRootAddress": "http://localhost:62114/"

It's used to calculate some URLs in the application. So, you need to change this on deployment. For multi-tenant applications, this URL can contain dynamic tenancy name. In that case, put {TENANCY_NAME} instead of tenancy name like:

"WebSiteRootAddress": "http://{TENANCY_NAME}.mydomain.com/"

Thus, ASP.NET Zero can automatically detect current tenant from URLs. If you configure it as above, you should also redirect all subdomains to your application. To do that;

  1. You should configure DNS to redirect all subdomains to a static IP address. To declare 'all subdomains', you can use a wildcard e.g. *.mydomain.com.
  2. You should configure IIS to bind this static IP to your application.

There may be other ways of doing it but this is the simplest.

Similar to "WebSiteRootAddress", "ServerRootAddress" setting is also exists in appsettings.json in .Web.Host project. In addition, .Web.Host application contains "ClientRootAddress" which is used if this API is used by the Angular UI. If you are not using Angular UI, you can ignore it. Finally, "CorsOrigins" setting is used to allow some domains for cross origin requests. This is also useful when you are hosting your Angular UI in a separated server/domain.

Account Controller

AccountController provides login, register, forgot password and email activation pages.

Layout

Account management pages have a separated _Layout view under Views/Account folder:

Account Views

Related Script and Style resources located under view-resources/Views/Account folder:

Account view resources

As similar, all views of the application have corresponding style and script files under wwwroot/view-resources folder.

Login

Main view for AccountController is the Login page:

Login page

The tenant selection section above login section is only shown in a multi-tenant application and if "subdomain tenancy name detection" is not possible (See host settings section). When we click Change link, tenant change dialog appears and we can change the tenant. There is a single tenant named Default in the initial database (See Entity framework section for initial seed data). Leave tenancy name input as blank to login as host.

We can use admin user name and 123qwe password in first run the application. At first login, we should change admin password since 123qwe is not very secure:

Change password

After changing password we are redirected to the backend application.

Social Logins

ASP.NET Zero supports social media logins. To enable it, we should change the following settings in appsettings.json file.

  "Authentication": {
    "Facebook": {
      "IsEnabled": "false",
      "AppId": "",
      "AppSecret": ""
    },
    "Google": {
      "IsEnabled": "false",
      "ClientId": "",
      "ClientSecret": ""
    },
    "Twitter": {
      "IsEnabled": "false",
      "ConsumerKey": "",
      "ConsumerSecret": ""
    },
    "Microsoft": {
      "IsEnabled": "false",
      "ConsumerKey": "",
      "ConsumerSecret": ""
    }
  },

You can find many documents on the web to learn how to obtain authentication keys for social platforms. So, we will not go to details of creating apps on social medias. Once you get your keys, you can write them into appsettings.json. When you enable it, social media logos are automatically shown on the login page as shown below:

Social Login Icons

OpenId Connect Login

In addition to social logins, ASP.NET Zero includes OpenId Connect Login integrated. It's configuration can be changed in appsettings.json:

"OpenId": {
  "IsEnabled": "false",
  "Authority": "",
  "ClientId": "",
  "ClientSecret": ""
}

Two Factor Login

ASP.NET Zero is ready to provide two factor login, but it's disabled as default. You can easily enable it in host settings page (in Security tab):

Note: In a multi-tenant application, two factor authentication is available to tenants only if it's enabled in the host settings. Also, email verification and SMS verification settings are only available in the host side. This is by design.

When it's enabled, user is asked to select a verification provider after entering user name and password:

Send security code

Then a confirmation code is sent to the selected provider and user enters the code in the next page:

Verify security code
Email Verification

This is available if user has a confirmed email address. Since email sending is disabled in debug mode, you can see the code in logs. In release mode, email will be sent (You can change this and make emailing available in also debug. See sending emails section).

SMS Verification

This is available if user has a confirmed phone number. SMS sending is not implemented actually (because it requires an integration to an SMS vendor). Current implementation just writes security code to logs. You should complete SmsSender class in the solution to make it usable. Otherwise, disable SMS verification in the settings.

User Lockout

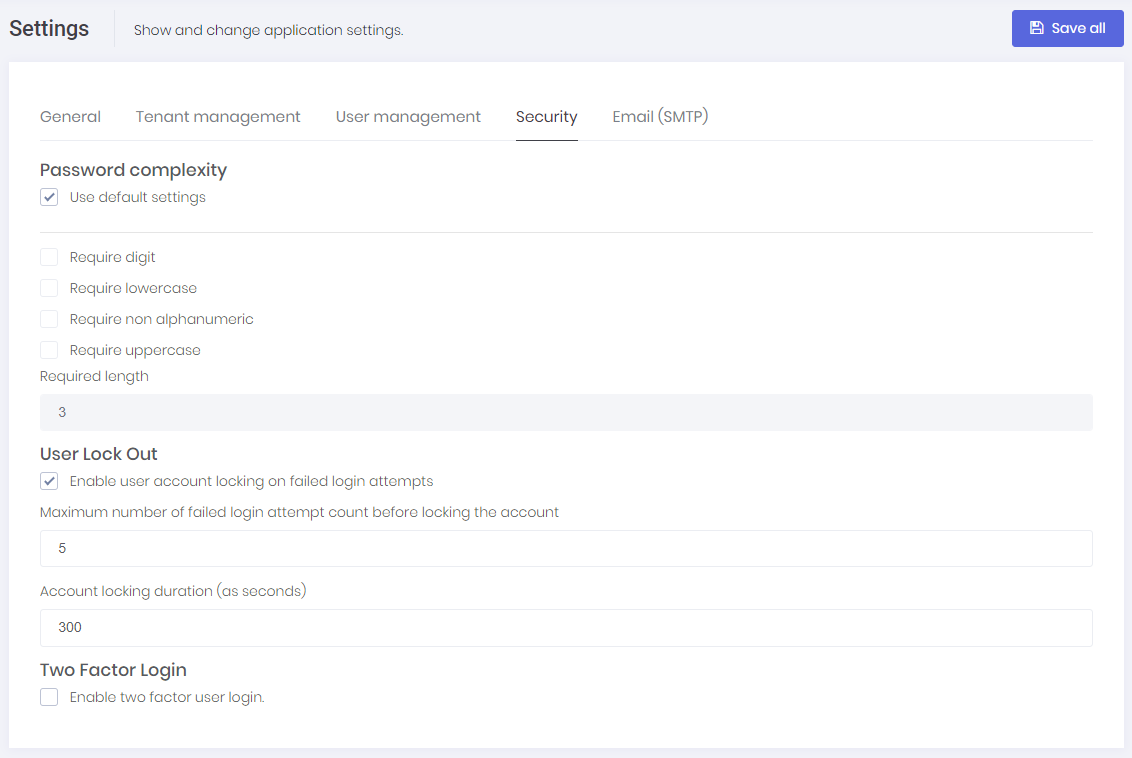

As seen in the previous section, you can configure user lockout settings. Users are lockout when they enter wrong password for a specified count and duration.

Register

When we click the "Create Account" link in the login page, a registration form is shown:

Registration form

A user can be register for a tenant, not for host if this is a multi-tenant application. If it's single-teant, there will be no tenancy name input here.

Recaptcha (security question) is optional. It uses Google's recaptcha service. Recaptcha service works per domain. So, to make it properly work, you should create your own private and public keys for your domain on https://www.google.com/recaptcha and replace keys in appsettings.json file.

Email Activation

When a user registers as shown above, an email confirmation code is sent to his email address. If user did not receive this email for some reason, he can click Email activation and re-send the confirmation code.

Email activation screen

Again, Tenancy name input is not shown for a single-tenant application or tenant name is known via subdomain (like tenancyname.mydomain.com).

Forgot Password

If a user forgots his password, he can click the "Forgot Password" link to get an email to reset the password.

Forgot password

Back End Application

This is the actual application which is entered by username and password. You will mostly work on this application to add your business requirements.

Application Folders

Backend application is built in a dedicated area, named "App" by default, but can be determined while you are creating the solution. So, all controllers, views and models are located under Areas/App folder. Also, related script and style files are located under wwwroot/view-resources/Areas/App folder, as shown below:

Application folders

Main Menu

Application's main menu is defined in AppNavigationProvider class. See ABP's navigation documentation to have a deep understanding on creating menus. When you add a new menu item, it's automatically rendered in the layout.

Layout

Layout of the application is located under Areas/App/Views/Layout folder. It uses Components for header, footer and sidebar:

Application layout

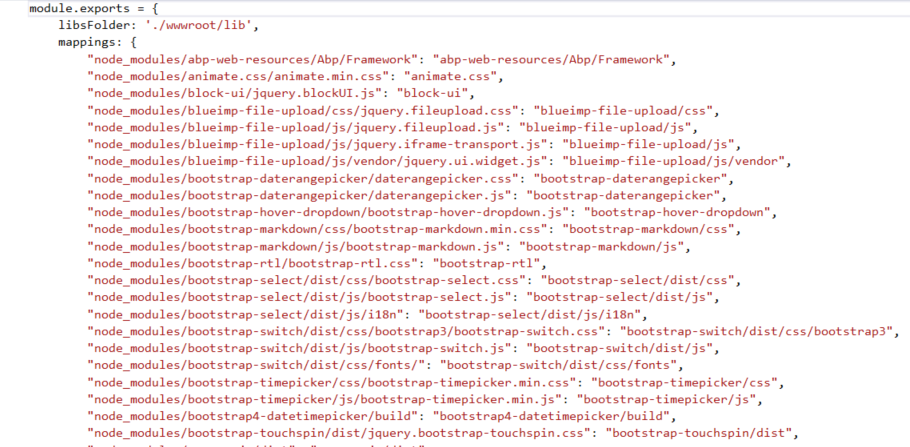

Main menu is rendered in menu component. Layout also highly uses bundling & minification (see the section below) system for script and style includes.

Edition Management

If you're not developing a multi-tenant application, you can skip this section.

Most SaaS (multi-tenant) applications have editions (packages) those have different features. Thus, they can provide different price and feature options to their tenants (customers). Editions page (available in host login) is used to manage application's editions:

Editions Page

Editions are used to group feature values and assign to tenants. When we click Actions/Edit for an edition, we can see it's poperties:

Edit Edition

An edition can be free or paid. If it's a paid edition then you should enter monthly and annual prices. You can allow tenants to use trial version of this edition for a specified days. Then you can determine an expire strategy: How many days to allow a tenant to use the application after subscription expires. And finally, you can deactivate tenant or assign to a free edition if they don't extend their subscription.

Features tab is used to determining features available for the edition:

Edit edition features

See feature management and edition management documents for more information.

Tenant Management

If you're not developing a multi-tenant application, you can skip this section.

If this is a multi-tenant application and you logged in as a host user, then tenants page is shown:

Tenant management page

A tenant is represented by Tenant class. Tenant class can be extended by adding new properties. There is an only one tenant, named Default as initial. Tenancy Name (code name) is the unique name of a tenant. A tenant can be active or passive. If it's passive, no user of this tenant can login to the application.

When we click the "Create New Tenant" button, a dialog is shown:

Tenant Creation Modal

Tenancy name should be unique and not contain spaces or other special chars since it may be used as subdomain name (like tenancyname.mydomain.com. See the section below). Name can be anything. Admin email is used as email address of the admin user of new tenant. Admin user is automatically created with the tenant. We can set a random password for admin and send activation email. When user first logins, he/she should change the password. We can uncheck this to enter a known password.

When we create a new tenant, we should select/create a database to store new tenant's data. We can select 'Use host database' to store tenant data in host database (can be used for single database approach) or we can specify a connection string to create/use a dedicated database for new tenant. ASP.NET Zero supports hybrid approach. That means you can use host database for some tenants and create dedicated databases for some other tenants. Even you can group some tenants in a separated database.

Once you assign an edition to the tenant, you can select an expiration date (see edition management section to know what happens after subscription expiration).

All tenant actions are handled by TenantAppService class. Example (deleting a tenant):

[AbpAuthorize(AppPermissions.Pages_Tenants_Delete)]
public async Task DeleteTenant(EntityRequestInput input)
{
    var tenant = await TenantManager.GetByIdAsync(input.Id);
    CheckErrors(await TenantManager.DeleteAsync(tenant));
}

TenantAppService mostly uses TenantManager domain service for tenant operations.

Tenant Edition and Features

An edition can be assigned to a tenant (while creating or editing). Tenant will inherit all features of the assigned edition. But we can also override features and values for a tenant. Click actions/change features for a tenant to customize it's features:

Tenant features
Tenant User Impersonation

As a host user, we may want to perform operations in behalf of a tenant. In this case, we can click the "Login as this tenant" button in the actions. When we click it, we see a modal to select a user of the tenant. We can select any user and perform operations allowed that user. See User Impersonation section in this document for more information.

Using Tenancy Name As Subdomain

A multi-tenant application generally uses subdomain to identify current tenant. tenant1.mydomain.com, tenant2.mydomain.com and so on. ASP.NET Zero automatically identify and get tenant name from subdomain (See host settings section).

Host Dashboard

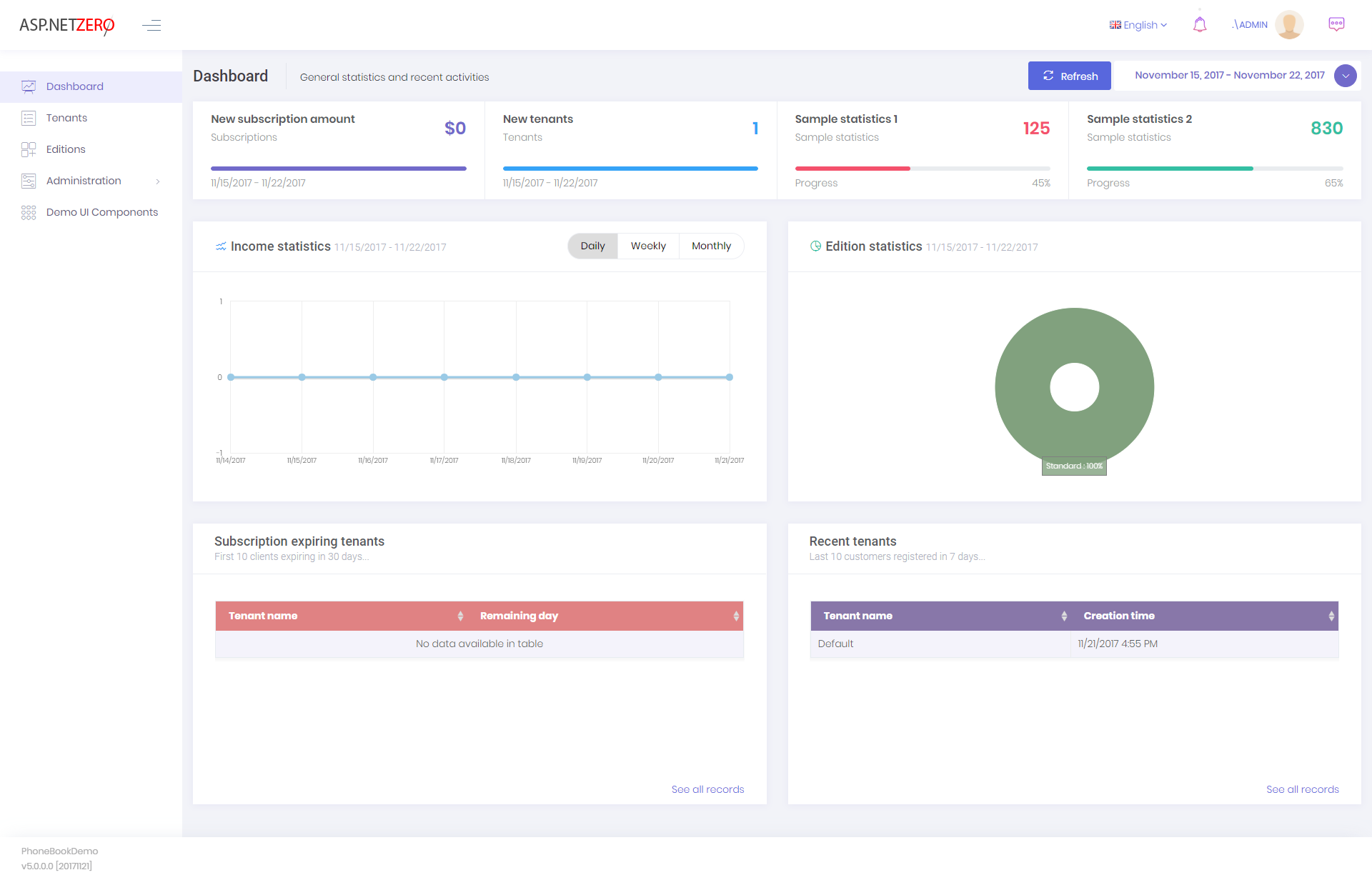

Host dashboard is used to show some statistics about tenants, editions and income:

Host dashboard

This is a fully implemented dashboard except two sample statistics (sample statistics 1 & 2) those are placeholders for your own statistics.

Organization Units

Organization units (OU) are used to hierarchically group user and entities. Then you can get user or entities based on their OUs. When we click Administration/Organization units, we enter the related page:

Organization units page

Here, we can manage OUs (create, edit, delele, move) and members (add/remove).

OrganizationUnitManager is used to manage OUs, UserManager is used to manage OU members in the code. OrganizationUnitAppService performs the application logic.

In the left OU tree, we can right click to an OU (or left click to arrow at the right) to open context menu for OU operations. When we try to add a member, a modal is shown to select the user:

Select a user dialog

This is actually a generic lookup modal and can be used to select any type of entity (see Areas/App/Views/Common/Modals/_LookupModal.cshtml and it's related script file). To select the users, we created FindUsers method in CommonLookupAppService then configured the modal to work with this method (see view-resources/Areas/App/Views/OrganizationUnits/index.js file for usage of lookupModal.open).

See organization unit management document for more information.

Role Management

When we click Administration/Roles menu, we enter to the role management page:

Role management page

Roles are used to group permissions. When a user has a role, then he/she will have all permissions of that role.

A role is represented by the Role class. Role class can be extended by adding new properties.

RoleManager performs domain logic, RoleAppService performs application logic for roles.

Roles can be dynamic or static:

  • Static role: A static role has a known name (like 'admin') and can not change this name (we can change display name). It's exists on the system startup and can not be deleted. Thus, we can write our code based on a static role name.
  • Dynamic role: We can create a dynamic role after deployment. Then we can grant permissions for that role, we can assign the role to some users and we can delete it. We can not know names of dynamic roles in development time.

One or more roles can be set as default. Default roles are assigned to new added/registered users as default. This is not a development time property and can be set or changed after deployment.

In startup project, we have static admin role for host (for multi-tenant apps). Also, we have static admin and user roles for tenants. Admin roles have all permissions granted by default. User role is the default role for new users and has no permission by default. These can be changed easily. See StaticRoleNames class for all static roles and AppRoleConfig for changing static roles.

Role Permissions

Since roles are used to group permissions, we can set permissions of a role while creating or editing as shown below:

Role Permissions

(not all permissions shown in the figure above)

Every tenant has it's own roles and any change in roles for a tenant does not effect other tenants. Also, host has also own isolated roles.

User Management

When we click Administration/Users menu, we enter to the user management page:

User management

Users are people who can login to the application and perform some operations based on their permissions.

User class represents a user. User class can be extended by adding new properties.

UserManager is used to perform domain logic, UserAppService is used to perform application logic for users.

A user can have zero or more roles. If a user has more than one role, he inherits union of permissions of all these roles. Also, we can set user-specific permission. A user specific permission setting overrides role settings for this permission. A screenshot of user permission dialog:

User Permissions

(not all permissions shown in the figure above)

A dialog is used to create/edit a user:

Editing User

We can change user's password, make her active/passive and so on... A user can have a profile picture. It can be changed by the user (See User Menu section). Admin user can not be deleted as a business rule. If you don't want to use admin, you can make it passive.

User Impersonation

As admin (or any allowed user), we may want to login as a user and perform operations in behalf of that user, without knowing his password. When we click "Login as this user" icon in the actions of a user, we are automatically redirected and logged in as this user. This is called as "user impersonation". When we impersonate a user, a "back to my account" option is added to the user profile menu:

Back to my account link

In an impersonated account, we can only perform operations allowed to that user. That means, everything exactly works as same as this user logged in himself. The only difference is shown in audit logs which indicates that operations are performed by somebody else. Notice that; Also a red 'back' icon shown near to the user name to indicate that you are in an impersonated account.

Impersonation is done in AccountController of the Web project.

Language Management

Language management page is used to manage (add/edit/delete) application languages and change localized texts:

Language management

We can create new language, edit/delete an existing language and set a language as default. Note that; tenants can not edit/delete default languages, but host users can do.

When we click to Change text for any language, we are redirected to a new view to edit language texts:

Language texts

We can select any language as a base (reference) and change target language's texts. Base language is just to help the translation progress. Since there maybe different localization sources, we select the source to translate. When we click the edit icon, we can see the edit modal for the selected text:

Language text editing

Host users (if allowed) can edit languages and localized texts. These languages will be default for all tenants for a multi-tenant application. Tenants inherit languages and localized texts and can override localized texts or can add new languages.

Both pages use LanguageAppService class as application service. It has methods to manage languages and localized texts. IApplicationLanguageManager and IApplicationLanguageTextManager interfaces are used to perform domain logic (as used by LanguageAppService).

See language management and localization documents for more information.

Audit Logs

In audit logs page, we can see all user interactions with the application:

Audit logs

All application service methods and MVC controller actions are automatically logged and can be viewed here. See audit logs documentation to learn how to configure it. When we click the magnifier icon, we can see all details an audit log:

Audit Log

Audit log report is provided by AuditLogAppService class.

Subscription

Tenants can manage (show, extend or upgrade) their edition/plan subscriptions using this page:

Subscription

All payment records for extending/upgrading current licenses are kept in the system. These records can be seen on "Payment History" tab on subscription page.

Payment History

Tenants can also create & print invoices for these payments by clicking the "Show Invoice" button. System will automatically generate an invoice number and show the generated invoice. In order to use this function, both Host & Tenant must set invoice informations on host setting/tenant setting page.

Tenant Invoice Settings

After all, invoices for payments related to subscription can be generated. You can see a sample invoice below:

Sample Invoice

Visual Settings

ASP.NET Zero's look of UI can be modified in visual settings page. This page is used to modify look of UI both for system and personal user accounts. If a user doesn't have permission to see this page, then user will see an item named "Visual Settings" in his personal menu.

User visual settings

Users who have permission to see this page will see the same item in the application menu.

In this page, users can change visual settings for Layout, Header, Menu and Footer of the application.

Visual settings

Host Settings

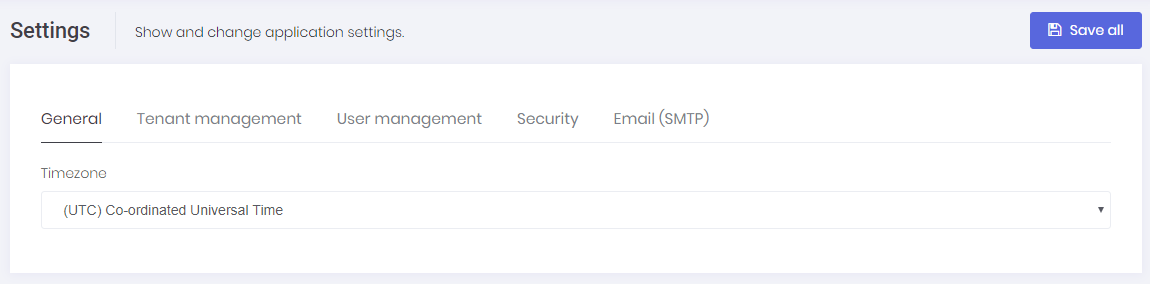

Host settings page is used to configure some system settings:

General Host Settings

Timezone is an important setting in this page. ASP.NET Zero can work in multiple zones. Each user can see dates and times in their own time zone. Timezone setting in this page allows you to set default time zone for the application including all tenants and users. Tenants and users can change time zone in their own settings. Timezone setting is available only if you are using UTC clock. See documentation to switch to UTC.

SAVE ALL button saves all settings in one click. HostSettingAppService is used to retrieve and save settings (See setting provider section for more information).

Security tab in host settings page contains password complexity and other security settings. Host can define system wide security settings in this tab. Each tenant can override this setting in tenant settings page. PasswordComplexityChecker class is responsible for checking if a password satisfies the password complexity settings.

Tenant settings

Tenant Settings

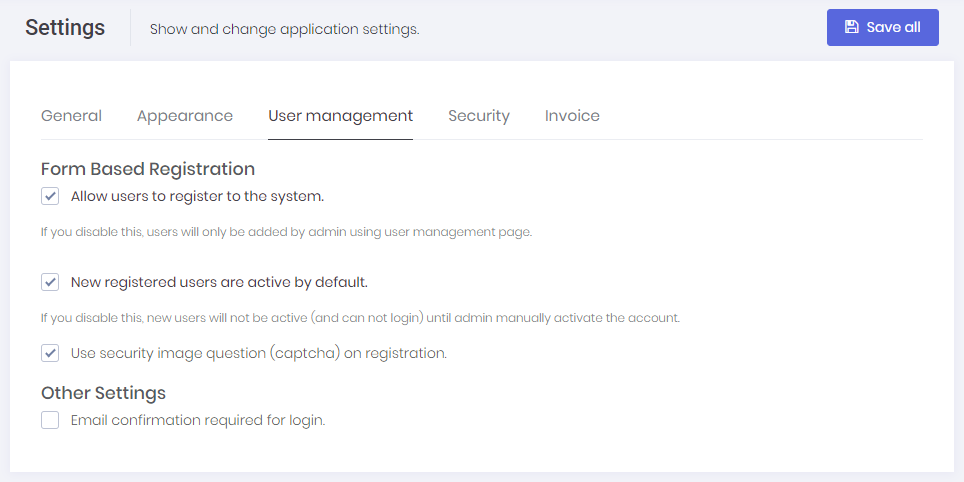

In a multi-tenant application, tenant settings are shown as below:

Tenant settings

If we disable multi-tenancy, some host settings are also shown in this page (since there is no host setting page). Tenants can also define password complexity settings for their users or they can use password complexity settings defined by host user.

TenantSettingAppService is used to get/set tenant settings.

Enabling LDAP (Active Directory) Authentication

LDAP (Active Directory) Authentication is disabled by default. To make it work, we should disable multi-tenancy since LDAP auth is not used in a multi-tenant system normally. In CoreModule class in .Core project, we should enable the following line:

Configuration.Modules.ZeroLdap().Enable(typeof(AppLdapAuthenticationSource));

Then, we can see LDAP settings section in settings page:

LDAP Settings

We can check "Enable LDAP Authentication" to enable it. If the server works in domain and application runs with a domain user or local system, then generally even no need to set Domain name, user and password. You can logout and then login with your domain user name and password. If not, you should set these credentials.

.NET Core Compatibility

LDAP Authentication is not supportted by .NET Core yet. Thus, it's designed to be conditional. If you are using .Net Framework (4.6+) then it will be available, otherwise it will be disabled.

Maintenance

Maintenance page is available to host side for multi tenant applications (for single tenant applications it's shown in tenant side) and shown as below:

Maintenance cache

In the Caches tab, we can clear some or all caches. Clearing caches may be needed if you manually change database and want to refresh application cache. CachingAppService is used to clear caches in the server side.

Website Logs tab is used to see and download logs:

Maintenance logs

WebLogAppService is used to get logs from server.

Tenant Dashboard

ASP.NET Zero startup project also includes a sample dashboard. It's just for demo purposes, you can make it as a start point for your actual dashboard:

Tenant Dashboard

Client gets all data from server, server generates random data.

Notifications

Notification icon is located next to the language selection button. The number in the red circle shows unread notification count.

notifications

User can see 3 recent notifications by clicking this icon.

notifications

User can marks all notifications as read by clicking the "Set all as read" link or can mark a single notification by clicking the "set as read" link next to each notification.

Notifications are sent real-time using SignalR. In addition, a desktop push notification is shown when a notification is received.

Notification Settings

"Settings" link opens notification settings dialog.

notifications

In this dialog there is a global setting for user to enable/disable receiving notifications. If this setting is enabled, then user can enable/disable each notification individually.

You can also define your custom notifications in AppNotificationProvider class. For example, new user registration notification is defined in the AppNotificationProvider as below.

context.Manager.Add(
     new NotificationDefinition(
        AppNotificationNames.NewUserRegistered,
        displayName: L("NewUserRegisteredNotificationDefinition"),
        permissionDependency: new SimplePermissionDependency(AppPermissions.Pages_Administration_Users)
    )
);

See notification definitions section for detailed information.

AppNotifier class is used to publish notifications. NotificationAppService class is used to manage application logic for notifications. See notifications documentation for detailed information.

Notification List

All notifications of user are listed in this page.

Notification list

.NET Core Compatibility

Since SignalR is not ready yet for .NET Core, real time notifications will not work if you select .NET Core as your base framework.

Chat

Chat icon is located next to user's profile image on top right corner of the page. The number in the red circle shows total unread chat message count.

User menu

When user clicks this icon, chat panel appears on the right of page. This panel contains friends of user and list of blocked users.

User menu

User can add new friends by writing the username into username textbox above friend list. If "Chat with other tenants" feature is enabled for tenant, users of other tenants can be added as a friend by writing [tenancy name]\[user name] (ex: Default\admin). If "Chat with host users" feature is enabled, host users can be added as friend by writing .\[user name] in the same textbox.

While online friends/users have a green circle on their profile image, offline friends/users have a gray circle.

User can pin or unpin the chat panel by clicking the pin icon on top right corner of the chat panel. Application tries to remember last state of chat panel and restores it when user login to application.

When a friend/user is selected, conversation panel is opened.

User menu

Chat system also allows sending images, files and link of current page to friends

Chat attachments

User can block or unblock friend/user in this area. There is a wrench icon right of the selected user's username. This icon opens an action menu and this menu contains block user or unblock user actions according to user's block status.

Chat messages are distributed over ChatHub signalR hub class which uses ChatMessageManager domain class.

ChatUserStateWatcher class is responsible for watching online/offline state changes of chat users. When a user becomes online or offline, this class catches the state change and notifies friends of related user.

FriendshipAppService and FriendshipManager classes are responsible for managing friendship requests. Chat messages from blocked users are not delivered to target users.

Since chat is a real time operation, application caches friends of online users and unread message count from each friend. UserFriendsCache class manages these caching operations.

UserFriendCacheSyncronizer class is responsible for keeping user friends cache up to date. In order to do that, it watches some events of Friendship and ChatMessage entities.

.NET Core Compatibility

Since SignalR is not ready yet for .NET Core, chat feature will not work if you select .NET Core as your base framework.

Chat Features
User menu

There are three chat features in the system. These are "Chat", "Chat with host", "Chat with other tenants". These features can be enabled/disabled per edition/tenant. By using these features host can enable/disable chat with other tenant's users or host users.

User Menu

A user can click his name at top right corner to open user menu:

User menu
Linked Accounts

Linked accounts are used to link multiple accounts to each other. In this way, a user can easily navigate through his/her accounts using this feature.

User can link new accounts or delete already linked accounts by clicking the "Manage accounts" link.

User menu

In order to link a new account, user must enter login credentials of related account.

link new account

UserLinkAppService class is used to manage application logic for account linking, UserLinkManager class is used to manage domain logic for account linking.

Profile Settings

My settings is used to change user profile settings:

User settings

As shown here, admin user name can not be changed. It's considered a special user name since it's used in database migration seed. Other users can change their usernames. ProfileAppService is used to get/change settings.

Login Attempts

All login attempts (success of failed) are logged in the application. A user can see last login attempts for his/her account. UserLoginAppService is used to get login attempts from server.

Login attempts
Change Picture

A user can change own profile picture. ProfileController is used to upload and get user profile pictures. Currently, jpg/jpeg, gif and png files are supported, you can extend it.

Change Password

ProfileAppService is used to change password.

Download Collected Data

A user can download his/her collected data using this menu item.

Login attempts
Logout

AccountController is used to logout the user and redirect to Login page.

Web.Host Application

ASP.NET Zero solution contains an extra project, Web.Host, which just exposes all application functionality as remote API. Thus, you can consume your application as API from any device. Actually, Web.Mvc project also does it, provides API for all application functionality. The difference is that Web.Mvc project has also MVC Controllers, Views, scripts and so on. If you just want to deploy API without UI, you can use Web.Host project. Otherwise, you can even delete it. We are using Web.Host project to provide server side API to Angular SPA.

A few notes on Web.Host project:

  • It has only token based (JWT) authentication (plus social login possibility). No form based authentication (because there is no UI).
  • It does not implement CSRF protection since it's not a security concern in token based auth.
  • It enables CORS. So, cross origin requests are allowed. It only allows to http://localhost:4200 by default (see Startup class for the configuration).
  • Configured and enabled Swagger UI by default.

Migrator Console Application

ASP.NET Zero includes a tool, Migrator.exe, to easily migrate your databases. You can run this application to create/migrate host and tenant databases.

Database Migrator

This application gets host connection string from it's own appsettings.json file. It will be same as in the appsettings.json in .Web project at the beginning. Be sure that the connection string in config file is the database you want. After getting host connection sring, it first creates the host database or apply migrations if it does already exists. Then it gets connection strings of tenant databases and runs migrations for those databases. It skips a tenant if it has not a dedicated database or it's database is already migrated for another tenant (for shared databases between multiple tenants).

You can use this tool on development or on product environment to migrate databases on deployment, instead of EntityFramework's own Migrate.exe (which requires some configuration and can only work for single database in one run).

Public Web Site

ASP.NET Zero contains a separated application that can be a starting point for your public web site or a landing page for your application. Set Web.Public as Startup Project and run the application:

Frontend home page

There are two pages here: Home Page and About. Contents of these pages are just placeholders and for demo purposes. You can completely remove content and build your page upon your needs. Also, you should change the logo with your Company's logo.

See metronic front-end themefor all possibilities and components to build a richer web site.

Menus are defined in FrontEndNavigationProvider class. When you add a new menu item here, it will be automatically shown in the menu. There is a Login link at the top right corner. This link takes us to the Login page to enter to the backend application.

Layout

Layout of front-end pages are located under Views/Layout folder:

Frontend layout views

_Layout is the main layout file that includes scripts and styles. Language flags and the menu is rendered in Header component which is located under Shared/Components. _PreFooter is not used but you can add it to the _Layout if you want.

New Tenant Registration

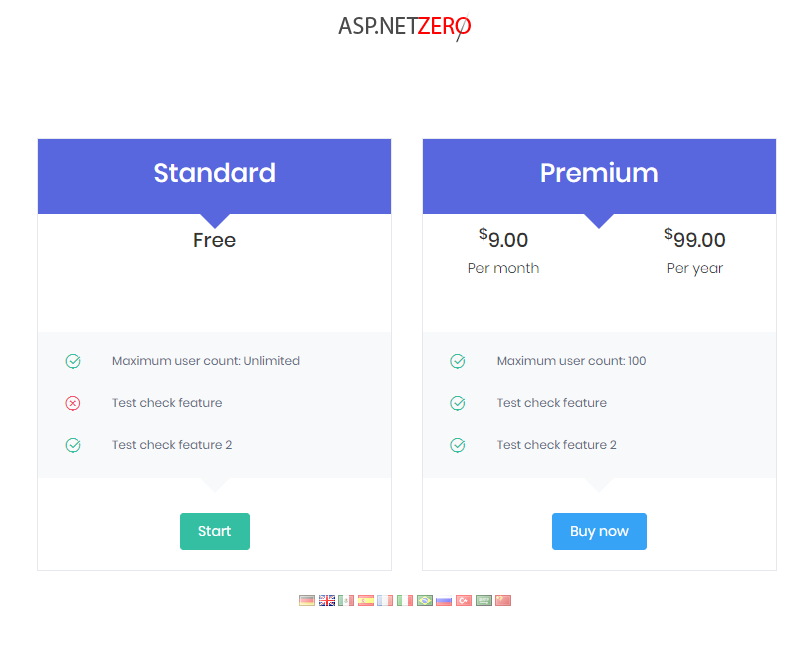

When you click "New Tenant" link (at the top right area) you are redirected to the edition/plan selection page:

New Tenant Register Edition Selection

Actually, this UI is located in the main application. When you pick an edition, you are redirected to the payment or register form depending on the button you clicked. Register form is shown as below:

Tenant register form

Single Sign On

Public web site has a login integration to the main application. When you click to login button (at the top right area) you are redirected to the main application. If you are already logged then you automatically login in the public web site too. If not, you can enter your username and password to login. Then you are redirected back to the public web site and your username is shown at the top right:

public web site login username

To make this working, public web site and main application must know their URLs. There are two configuration for that:

  1.  In the appsettings.json of the Web.Public project, set "AdminWebSiteRootAddress" to root URL of the main application.
  2.  In the appsettings.json of the Web.Mvc project, set "RedirectAllowedExternalWebSites" to root URL of the public web site.

Both configuration is properly set for the development environment. You should change them when you publish your project.

Setup Page

ASP.NET Zero application can be set-up using install page. This page is developed to create initial database, apply migrations and configure the application according to user's input on this page. Setup page can be accessed via http://yourwebsite.com/Install.

install page

Infrastructure

Startup Class

ASP.NET Core is initialized from the Startup class in the application. We configure all libraries (including ABP) in this class. We suggest you to start by checking this class. It is also integrated to OWIN. So, you can add OWIN middlewares here.

NPM & Front End Dependencies

ASP.NET Zero solution uses npm package manager to obtain front end library dependencies (like Bootstrap and jQuery). So, you can easily add new packages or update existing packages on command line interface. You can see all installed npm packages in package.json of the .Web.Mvc project.

NPM dependencies

NPM installs dependencies into node_modules folder which will be placed in the root folder of MVC project. But, in ASP.NET Core, it is suggested to place client side libraries under wwwroot folder. Also, size of node_modules folder will be very big (more than 250 MB) and we don't want to send all of those files to production when we publish our application. In order to overcome this, we have used gulp to move necessary files from *.Web.Mvc/node_modules to *.Web.Mvc/wwwroot/lib. Mapping from node_modules to wwwroot/lib folder is defined in package-mapping-config.js file. So, when you add a new package to your solution, you also need to add a mapping to this file defining the files you want to move from node_modules to wwwroot/lib folder for newly added package.

Here is a sample package-mapping-config.js file;

Gulp mappings

In order to create css and javascript bundles https://www.nuget.org/packages/BundlerMinifier.Core/ package is used. Bundling definitions are stored in bundleconfig.json file. If you don't want to modify this file manually, you can use https://marketplace.visualstudio.com/items?itemName=MadsKristensen.BundlerMinifier Visual Studio extension to create bundling definitions for you.

Application Services as MVC API Controllers

ASP.NET Zero project highly use AJAX to provide a better user experience. UI calls application service methods via AJAX. So, it's needed to create MVC API controllers as adapters (A Client calls MVC API Controller action via AJAX, then it calls application service method). ABP framework automatically creates MVC API Controllers for all application services. So, no need to manually create MVC API Controllers for application services.See related documentation for more. While ABP dynamically create Web API Controllers, we can also create regular MVC API Controllers as we always do.

Localization

ASP.NET Zero User Interface is completely localized. ASP.NET Zero uses dynamic, database based, per-tenant localization (See the related section above).

XML files are used as base translation for desired languages:

Localization XML files

PhoneBook will be your ProjectName. You can add more XML files by copying one XML file and translate to desired language. See valid culture codes.

When you are adding a new localizable text, add it to the XML file of the default language then use in your application (Also, add translated values to corresponding XML files). No need to add it to database migration code since value in the XML file will be used as default.

Application languages are defined in DefaultLanguagesCreator class. This is used as a seed data in Entity Framework Migration. So, if you want to add a new default language, just add it into DefaultLanguagesCreator class. Also, you should add a corresponding XML file as described above as default translation.

See localization and language management documentations for more information.

EntityFrameworkCore Integration

ASP.NET Zero template uses EntityFramework Core code-first and migrations. PhoneBookDbContext (YourProjectDbContext for your project) defines the DbContext class. Migrations folder contains EF migrations.

PhoneBookRepositoryBase class is the base class for your custom repositories. See entity framework integration documentation for more.

Database Migrations

You can use Package Manager Console to add new migrations and update your database as you normally do. See EF Core's documentation for details.

Exception Handling

ASP.NET Zero uses ABP's exception handling system. Thus, you don't need to handle & care about exceptions in most time.

ASP.NET Zero solution adds exception handling middlewares in the Startup class like that:

if (env.IsDevelopment())
{
    app.UseDeveloperExceptionPage();
}
else
{
    app.UseStatusCodePagesWithRedirects("~/Error?statusCode={0}");
    app.UseExceptionHandler("/Error");
}

So, you get a nicely formatted exception page in development and a more user friendly error page in production. See ErrorController and it's related views (Views\Error) for details.

User Secrets

ASP.NET Core introduced user secrets system to store sensitive data in development. ASP.NET Zero uses this system (it's configured properly for your solution). You may want to use a different connection string (or social media API keys) in development and do not want to add these secret data in your appsettings.json in the project (and do not want to commit these sensitive information to your source control system). Then use secret manager tool to store this sensitive information in your local computer and allow your application to read them from your local computer if available.

For example, you can use the following command, in Windows command prompt in the location of Core project, to change connection string for your local development environment:

dotnet user-secrets set ConnectionStrings:Default "Server=1.2.3.4;Database=MyProjectDevDb;User=sa;Password=12345678"

This user secret value overrides the value in the appsettings.json. See ASP.NET's own documentation for details about user secrets.

Authorization Provider

Authorization system is based on permissions. AppPermissions contains constants for permission names and AppAuthorizationProvider class defines all permissions in the system. We should define a permission here before using it in application layer.

See authorization documentation to learn how to configure permissions.

Feature Provider

AppFeatureProvider class defines features of the application for multi-tenant applications. Feature names are defined in AppFeatures class as contants.

See feature management documentation to learn how to define and use features.

Setting Provider

Every setting has a unique name. Setting names are defined in AppSettings class as constants. All settings and their default values are defined in AppSettingProvider class.

See setting documentation to learn how to create and use settings.

Navigation Provider

Menus are automatically generated using definitions in AppNavigationProvider class. We have two menus: Main (the main menu in the backend application) and FrontEnd (Main menu in front-end web site).

See navigation documentation for more information.

Caching And Redis Cache

ASP.NET Zero uses in-memory caching but it's ready to use Redis as cache server. If you want to enable it, just uncomment the following line in your WebCoreModule (in your .Web.Core project):

Configuration.Caching.UseRedis(...);

Redis server should be up & running to be able to use it. See caching documentation for more information.

Background Jobs And HangFire

ABP framework contains a background job system with a default background job manager. If you want to use Hangfire as your background job manager, you can easily enable it;

  1. Uncomment AddHangfire and UseHangfireDashboard and UseHangfireServer lines in Startup.cs (of Web.Mvc or Web.Host depending on your case).
  2. Uncomment Configuration.BackgroundJobs.UseHangfire in ...WebCoreModule.cs class in your .Web.Core project.

Note: Hangfire creates it's own tables in the database on first run. See background job and hangfire integration documents for more information.

SignalR Integration

SignalR is properly configured and integrated to the startup template. Real time notification and chat systems use it. You can direcly use SignalR in your applications.

Notice that; As the time being, SignalR has not been released for ASP.NET Core yet. We integrated OWIN to ASP.NET Core pipeline in order to use SignalR in the application. See SignalR integration document for more information on SignalR.

.NET Core Compatibility

Since SignalR is not ready yet for .NET Core, SignalR integration is disabled if you select .NET Core as your base framework.

Logging

ASP.NET Zero uses Log4Net for logging as default. Configuration is defined in log4net.config file in the .Web project. It writes all logs to App_Data/Logs/Logs.txt folder of web site as default. When you publish your project, remember to configure write permission to Logs folder.

Check logging documentation to see how to inject ILogger and write logs.

DTO Mappings

ASP.NET Zero uses AutoMapper for DTO to Entity mappings (and other types of object-to-object mappings). We use Abp.AutoMapper library that makes usage of AutoMapper simpler and declarative.

For instance, see the DTO class that is used to transfer a tenant editing information:

[AutoMap(typeof (Tenant))]
public class TenantEditDto : EntityDto
{
    [Required]
    [StringLength(Tenant.MaxTenancyNameLength)]
    public string TenancyName { get; set; }

    [Required]
    [StringLength(Tenant.MaxNameLength)]
    public string Name { get; set; }

    public bool IsActive { get; set; }
}

Here, AutoMap attribute automatically creates mapping between TenantEditDto and Tenant classes. Then we can automatically convert a Tenant object to TenantEditDto (and vice verse) object as shown below:

[AbpAuthorize(AppPermissions.Pages_Tenants_Edit)]
public async Task<TenantEditDto> GetTenantForEdit(EntityRequestInput input)
{
    return ObjectMapper.Map<TenantEditDto>(await TenantManager.GetByIdAsync(input.Id));
}

ObjectMapper (this property comes from base class, but can be injected as IObjectMapper when you need somewhere else) is used to perform mappings.

Custom Object Mappings

Attribute based mapping may not be sufficient in some cases. If you need to directly use Automapper API to configure your mappings, you should do it in CustomDtoMapper class.

See Data Transfer Objects documentation for more information on DTOs.

Sending Emails

ASP.NET Zero sends emails to users in some cases (like forgot password and email confirmation). Email template is defined in Emailing/EmailTemplates folder of .Core project (default.html). You can change default email template by editing this file.

Email sending is disabled in DEBUG mode. Because, development environment may not be configured properly to send emails. You can enable it if you want. It's enabled in RELEASE mode. Check YourProjectNameCoreModule class's PreInitialize method to change it if you like.

.NET Core Compatibility

Since .NET Core does not support smpt client, ASP.NET Zero uses MailKit to send emails.

BinaryObjectManager

User profile pictures are stored in database, instead of file system. But it's not stored in Users table for performance reasons (Users are frequently retrieved from database, but profile pictures are rarely needed).

A general-purpose binary saving mechanism built in ASP.NET Zero. BinaryObject entity can be used to save any type of binary objects (byte arrays). Since a profile picture can be converted to a byte array, user profile pictures are saved here.

IBinaryObjectManager interface defines methods to save, get and delete binary objects. DbBinaryObjectManager implements it to save binary object in database. For example, ProfileController uses IBinaryObjectManager to get current user's profile picture from database.

You can create a different implementation of IBinaryObjectManager interface to store files in another destination.

Soft Deletes

It's common to use the soft-delete pattern which is used to not delete an entity from database but only mark it as 'deleted'. So, if an entity is soft-deleted, it should not be accidentally retrieved into the application. ABP's data filters make this automatically.

In ASP.NET Zero, most entities are soft-deleted. See ABP's data filter documentation for more information about this topic.

Bundling, Minifying and Compiling

ASP.NET Zero uses Bundler & Minifier Visual Studio extension for bundling & minifying script and style files. It should be installed in your Visual Studio. bundleconfig.json file defines all bundling configuration.

ASP.NET Zero also uses Web Compiler Visual Studio extension for compiling LESS files to CSS files. This extension also should be installed in your Visual Studio. compilerconfig.json defines all compiling configuration.

See documentation of these extensions to learn to use them.

Base Classes

There are some useful base classes used in the application:

  • PhoneBookAppServiceBase can be used as a base class for all application services.
  • PhoneBookDomainServiceBase can be used as a base class for domain services.
  • PhoneBookControllerBase can be used as a base class for ASP.NET Core MVC Controllers.
  • PhoneBookRazorPage can be used as a base class for ASP.NET MVC Views. Actually, all views are automatically inherit this since it's defined in _ViewImports.cshtml files. You can add some common properties/methods here to use in all views.
  • PhoneBookServiceBase can be used as a base class for other service-like classes. UserEmailer class inherits it, for instance.
  • PhoneBookRepositoryBase can be used as a base class for custom repository implementations.

It's strongly recommended to inherit one of these classes upon your needs since they really make Logging, Localization, Authorization... easier.

CSRF/XSRF Protection

ABP framework simplifies and automates CSRF protection as much as possible. ASP.NET Zero template comes with pre-configured and working out of the box. For more information please see ABP's XSRF-CSRF-Protection documentation

Versioning

AppVersionHelper class is used to define current version of the application in single place. Version and release date automatically shown bottom left corner in the backend application pages. This helps us to see running application version always.

Token Based Authentication

 Any application can authenticate and use any functionality in the application as API. For instance, you can create a mobile application consumes the same API. In this section, we'll demonstrate usage of the API from Postman (a Google Chrome extension).

Authentication

We suggest you to disable two factor authentication for the user which will be used for remote authentication. Otherwise, two factor authentication flow should be implemented by the client. We assume that you have disabled two factor authentication for the admin user of default tenant since we will use it in this sample.

Following headers should be configured for all requests (Abp.TenantId is Id of the default tenant. This is not required for single tenant applications or if you want to work with host users):

Postman auth headers

Then we can send username and password as a POST request to http://localhost:62114**/api/TokenAuth/Authenticate**

Postman get user list

In the returning response, accessToken will be used to authorize for the API.

Using API

After authenticate and get the access token, we can use it to call any authorized actions. All services are available to be used remotely. For example, we can use the User service to get a list of users:

Postman authentication

We sent a GET request to http://localhost:62114**/api/services/app/User/GetUsers** and added Authorization to the header as "Bearer <accessToken>". Returning JSON contains the list of users.

Swagger UI

Swagger UI is integrated to ASP.NET Zero but disabled by default. Swagger UI configuration is located in Startup class in the .Web project. You can enable it by just uncommenting the related lines:

In Startup.ConfigureServices method, enable the following line:

services.AddSwaggerGen();

And in Startup.Configure method, enable the following lines:

app.UseSwagger();
app.UseSwaggerUi();

You can browse swagger ui with this URL: "/swagger/ui".

Swagger UI

Thus, anyone (or any application) can explore, test and use the API easily.

Identity Server 4 Integration

IdentityServer4 is an OpenID Connect and OAuth 2.0 framework for ASP.NET Core. ASP.NET Zero is integrated to IdentityServer4. It's enabled by default.

Configuration

You can enable/disable or configure it from appsettings.json file

"IdentityServer": {
  "IsEnabled": "true",
  "Clients": [
    {
      "ClientId": "client",
      "AllowedGrantTypes": [ "password" ],
      "ClientSecrets": [
        {
          "Value": "def2edf7-5d42-4edc-a84a-30136c340e13"
        }
      ],
      "AllowedScopes": [ "default-api" ]
    },
    {
      "ClientId": "demo",
      "ClientName": "MVC Client Demo",
      "AllowedGrantTypes": [ "hybrid", "client_credentials" ],
      "RequireConsent": "true",
      "ClientSecrets": [
        {
          "Value": "def2edf7-5d42-4edc-a84a-30136c340e13"
        }
      ],
      "RedirectUris": [ "http://openidclientdemo.com:8001/signin-oidc" ],
      "PostLogoutRedirectUris": [ "http://openidclientdemo.com:8001/signout-callback-oidc" ],
      "AllowedScopes": [ "openid", "profile", "email", "phone", "default-api" ],
      "AllowOfflineAccess": "true"
    }
  ]
}

Testing with Client

ASP.NET Zero solution has a sample console application (ConsoleApiClient) that can connects to the application, authenticates through IdentityServer4 and calls an API.

OpenId Connect Integration

Once IdentityServer4 integration is enabled Web.Mvc application becomes an OpenId Connect server. That means another web application can use standard OpenId Connect protocol to authenticate users with your application and get permission to share their information (a.k.a. consent screen).

More

See IdentityServer4's own documentation to understand and configure IdentityServer4.

Unit Testing

ASP.NET Zero startup project contains unit and integration tests. Tests are developed using following tools:

  • xUnit as as testing framework.
  • SQLite In-Memory database for mocking entity framework and database.
  • Abp.TestBase to simplify integration testing for ABP based applications.
  • Shouldly as assertion library.

Tests cover Domain (core) and Application layers of the project. Open Test Explorer (Test\Windows\Test Explorer in VS main menu) to run unit tests:

Some unit tests (tenant creation, edition creation etc.) are only valid in multi tenancy concept. You can change AbpZeroTemplateConsts.MultiTenancyEnabled to false in order to make your application single tenant. Thus, multitenancy related tests will be skipped.

Some unit tests

These unit tests will be a guide to understand the code. Also, they can be a model while writing your own unit tests for your application's functionalities.

All unit test classes (actually they are integration tests since they work integrated to ABP, EntityFramework, AutoMapper and other libraries used up to application layer) are derived from AppTestBase. It initializes ABP system, mocks database using Effort, creates initial test data and logins to the application for each tests. It also provides some useful common methods for all tests.

Here, a sample unit test in the application:

public class UserAppService_Delete_Tests : UserAppServiceTestBase
{
    [Fact]
    public async Task Should_Delete_User()
    {
        //Arrange
        CreateTestUsers();

        var user = await GetUserByUserNameOrNullAsync("artdent");
        user.ShouldNotBe(null);

        //Act
        await UserAppService.DeleteUser(new IdInput<long>(user.Id));

        //Assert
        user = await GetUserByUserNameOrNullAsync("artdent");
        user.IsDeleted.ShouldBe(true);
    }
}

It creates some users to test and then verifies there is a user named "artdent". Then it calls DeleteUser method of the user application service (which is being tested). Finally, checks if user is deleted. Here, User is a Soft Delete entity, so it's IsDeleted property must be true if it's deleted.

You can read this article to understand unit testing better.

Publishing

Email Settings

If you don't configure email settings, some functions may not work (Like new tenant registration).

Publishing ASP.NET Zero is not different than any other solution. You can use Visual Studio as normally you do.

Publish to The Azure

Read this document to publish to the Azure.

ASP.NET Zero Power Tools

ASP.NET Zero Power Tools creates all related layers (including UI) by defining an entity.

See documentation to learn how to use it.

Configuration

ASP.NET Zero is properly configured for development. But when you want to publish your application to your test/production environment, you may need to change some configuration in order to make it properly work. Each section in this document describes it's own configuration, but we will provide a summary here.

Every application in the solution has it's own appsettings.json that should be independently configured.

Web.Mvc Application
  • "ConnectionStrings:Default": Database connection string.
  • "Abp.RedisCache": Redis cache settings if you are enabled Redis cache provider.
  • "App:WebSiteRootAddress": Root URL of this application.
  • "App:RedirectAllowedExternalWebSites": A comma separated list of root URLs those are allowed to be redirected once user logins. For security reasons, ASP.NET Zero only redirects to local URLs except this list. If you will use the public web site, you should add it's root URL to this list.
  • "Authentication": Authentication settings especially for external login providers.
  • "Recaptcha": Recaptcha settings if you enabled it.
  • "IdentityServer": IdentityServer settings. It's important to disable it if you are not using IdentityServer. If you are using, ensure that you configured proper settings.
  • "Payment": Payment provider settings if you are developing a paid SaaS product.

Web.Public Application

  • "ConnectionStrings:Default": Database connection string.
  • "App:WebSiteRootAddress": Root URL of this application (the public web site).
  • "App:AdminWebSiteRootAddress": Root URL of the main (Web.Mvc) application.

Migrator Application

  • "ConnectionStrings:Default": Database connection string.

Web.Host Application

  • "ConnectionStrings:Default": Database connection string.
  • "Abp.RedisCache": Redis cache settings if you are enabled Redis cache provider.
  • "App:ServerRootAddress": Root URL of this application.
  • "App:ClientRootAddress": Root URL of the Angular application (if you are using Angular as UI).
  • "App:CorsOrigins": Allowed origins for cross origin requests (splitted by comma).
  • "Authentication": Authentication settings especially for external login providers.
  • "IdentityServer": IdentityServer settings. It's important to disable it if you are not using IdentityServer. If you are using, ensure that you configured proper settings.
  • "Payment": Payment provider settings if you are developing a paid SaaS product.

Publishing to IIS

Read this document to publish to the IIS.

Publishing to Docker Containers

ASP.NET Zero solution has a build folder which contains a Powershell script to build & publish your solution to the output folder. It also contains Docker files to run your application inside Docker containers. These files are very simple, you can improve them based on your needs.

Penetration Test

Asp.Net Zero (v5) has been scanned for vulnerabilities with the latest version of OWASP ZAP (v2.7.0). The OWASP Zed Attack Proxy (ZAP) is one of the world's most popular security tools and is actively maintained by hundreds of international volunteers, see Security-Report for details.

Used Library & Frameworks

Many open source frameworks and libraries are used to build ASP.NET Zero project. Here, a list of all libraries.

In this document
