Power Tools Custom Code - MVC

ASP.NET Zero Power Tools generates code that can be fully regenerated whenever you change an entity. The Custom Code feature lets you add your own code to the generated pages and classes so that your additions survive regeneration.

This page covers how Custom Code works in ASP.NET Core MVC projects. For other UI frameworks, see Custom Code - Angular and Custom Code - React. For the MAUI mobile app, see Custom Code - MAUI.

Enabling Custom Code

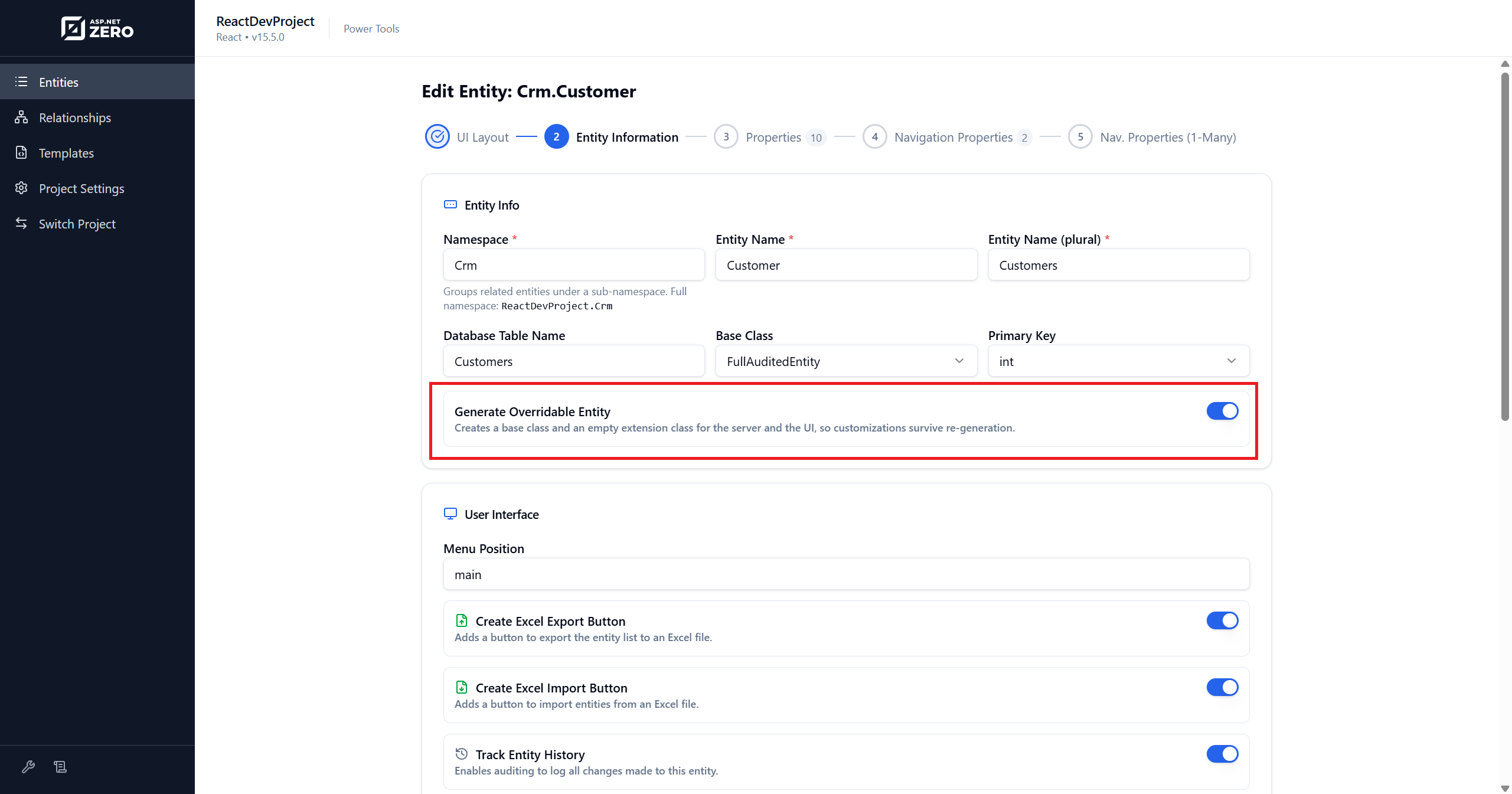

Open Power Tools, select your entity, and turn on the Generate Overridable Entity switch in the Entity Information section.

When this switch is on, Power Tools generates additional extension files that you own. These files are created once and never overwritten, even when you regenerate the entity.

The switch affects both the server side and the client side.

Requirements

Project version. The Controller and ViewModel extension files are available on all supported project versions. The az:begin / az:end region slots live in the current MVC template set, which Power Tools uses for v15.3+ projects; older projects get the extension files but no region slots.

Limitations

Master-detail child entities. The switch has no effect on the server layer of a child entity in a master-detail pair - none of the server-side extension files are generated for it, and neither is <Entity>Controller.Extended.cs. The ViewModel extension files are still generated.

How It Works

MVC uses two complementary mechanisms to preserve your code during regeneration:

Razor views and JavaScript files cannot use the base/subclass pattern, so they rely entirely on preserved region slots.

Server Side

When Generate Overridable Entity is enabled, the following server-side extension files are generated. These are shared across all UI frameworks.

Power Tools splits each generated class in two: the generated half keeps the original file name and gains a Base suffix on the class name, and your half is a new .Extended.cs file holding a subclass at the original class name. Existing references keep resolving to your class, so nothing else in the solution has to change.

For a Product entity, the generated files are:

The entity is the one exception to the naming pattern. Because EF Core maps the class by name, the file is renamed rather than the class: ProductBase.cs is regenerated, and Product.cs is yours and is never overwritten. Do not expect a Product.Extended.cs, and do not treat Product.cs as generated.

Each .Extended.cs file contains:

// Write your custom code here.
// ASP.NET Zero Power Tools will not overwrite this class
// when you regenerate the related entity.

The base files (without .Extended) are fully regenerated on every run. New entity properties automatically flow into them. Your customizations in the extension files are preserved because Power Tools never touches them after the first generation.

MVC C# - Extension Files

When you enable Generate Overridable Entity, the MVC Controller and ViewModel classes are split into base and extension files:

If the entity has a view-only page enabled, a *ViewEntityViewModel.Extended.cs is also generated.

Example for a Product Entity

ProductsController.cs              ← regenerated (abstract base)
ProductsController.Extended.cs     ← yours (extends base)

ProductsViewModel.cs               ← regenerated (abstract base)
ProductsViewModel.Extended.cs      ← yours (extends base)

Override any method in the extension file:

public class ProductsController : ProductsControllerBase
{
    // Write your custom code here.
    // ASP.NET Zero Power Tools will not overwrite this class
    // when you regenerate the related entity.
}

MVC Razor & JavaScript - Preserved Region Slots

Razor views and JavaScript files use named az:begin / az:end markers. You can place custom markup or code between these markers and it will be preserved on regeneration.

Index Page - Razor Slots

<!-- az:begin(filters) -->
<!-- Add custom advanced filter controls here -->
<!-- az:end(filters) -->

<!-- az:begin(column-headers) -->
<!-- Add custom <th> column headers here -->
<!-- az:end(column-headers) -->

Index Page Toolbar - Razor Slot

<!-- az:begin(toolbar-actions) -->
<!-- Add custom toolbar buttons here -->
<!-- az:end(toolbar-actions) -->

Index Page - JavaScript Slot

// az:begin(columns)
// Add custom DataTables columnDefs entries here
// az:end(columns)

Create/Edit Modal - Razor Slot

<!-- az:begin(form-fields) -->
<!-- Add custom form fields here -->
<!-- az:end(form-fields) -->

View Entity Modal - Razor Slot

<!-- az:begin(detail-fields) -->
<!-- Add custom detail fields here -->
<!-- az:end(detail-fields) -->

Slot Reference

The column-headers slot in the Razor file and the columns slot in the JavaScript file are paired. Adding a custom column requires entries in both files.

Example - Adding a Custom Column

In the Razor file (.cshtml):

<!-- az:begin(column-headers) -->
<th>Custom Score</th>
<!-- az:end(column-headers) -->

In the JavaScript file (.js):

// az:begin(columns)
{
    data: "product.customScore",
    name: "customScore",
    render: function(data) { return data || "-"; }
},
// az:end(columns)

Example - Adding a Custom Form Field

<!-- az:begin(form-fields) -->
<div class="form-group">
    <label asp-for="InternalNotes" class="control-label"></label>
    <textarea asp-for="InternalNotes" class="form-control" rows="3"></textarea>
</div>
<!-- az:end(form-fields) -->

Example - Adding a Custom Toolbar Button

<!-- az:begin(toolbar-actions) -->
<button class="btn btn-outline-primary" onclick="exportCustomReport()">
    <i class="fa fa-file-export"></i> Custom Report
</button>
<!-- az:end(toolbar-actions) -->

Preserved Region Rules

The az:begin / az:end markers follow these rules:

Safety Features

Power Tools includes safety mechanisms to prevent code loss:

• Abort on malformed markers: If region markers are broken (unclosed, nested, duplicated, mismatched), the entire file is left untouched. No partial merge ever occurs.
• Orphan rescue: If a region name existed in the old file but not in the newly generated output (for example, if a template update removes a slot), the content is saved to a sidecar file (<filename>.orphaned.txt) and a warning is shown. Content is never silently dropped.
• Ownership guard: Toggling the Generate Overridable Entity switch on an entity that already has generated files is handled in both directions:
  • Turning it off points a fully generated template back at the file that holds your code. Power Tools detects your code and refuses to overwrite it.
  • Turning it on makes a path that used to be fully generated developer-owned. The file already sitting there is old generated code, so Power Tools deletes it and lets the template write the new split - saving a copy as <filename>.bak beside it first. If you had hand-edited that file, your changes are in the .bak, not in the regenerated one.

Next

How to Create & Edit Power Tools Templates
